MFC

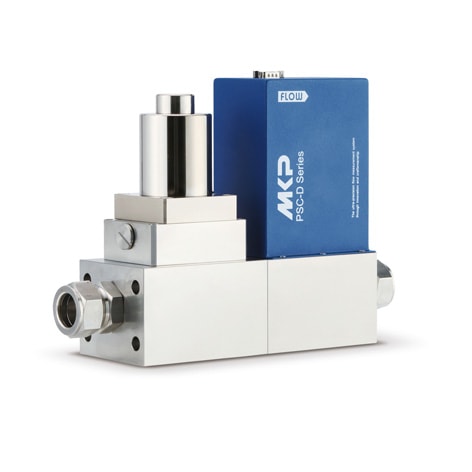

PSC-D245 PSC-D200 Series

Simple structure compared to thermal sensor and resistant to moisture and particles
Excellent accuracy and stability
Fast response speed with double valve structure

Product specification
Flow range (N2)	100~500slm
Flow control range	of full scale2 ~ 100%
Accuracy	≤ ± 1% of Full Scale
Response time	≤ 1 sec
Linearity	≤ ± 0.2% of full scale
Operating principle	differential pressure
Control valve type	Normally Closed Solenoid
Type of seal	Elastomer (Viton®, Viton-ETP®, Kalrez®, etc.)
In/Outlet signal	Analog: 0 ~ 5VDC or 4 ~ 20mA / Digital: RS-485 (D-NET can be applied.)
Power supply	+15VDC ~ +24VDC
Operating temperature	5 ~ 50℃ (recommended temperature range: 15 ~ 35℃)
Display	D-SUB 9P MALE (D-NET Connector can be applied.)
Explosion-proof	N/A
Signal	N/A
Weight	8kg

sccm and slm are symbols that indicate standard gas flow (mL/min, L/min, at 0'C101.3kPa).

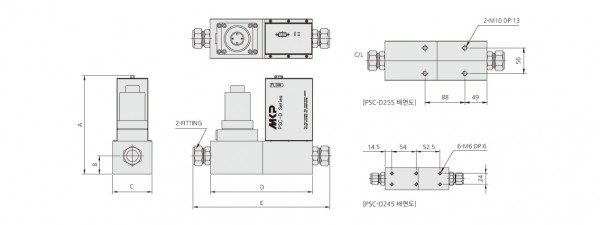

PSC-D200 Series Appearance drawing

Model	A	B	C	D	E
Model	A	B	C	D	3/8" LOK	1/2" VCR	3/4" LOK	1" LOK
PSC-D245	184.2	24.5	49	141	196.8	205.6	210.6	217.6
PSC-D255	217.5	40.5	87	226	-	-	295.6	302.6
